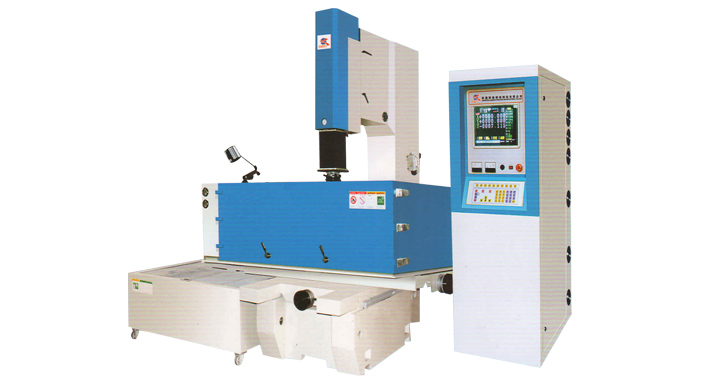

Roll Branding Machine
ZNC E.D.M Model : ZNC - 700

we are manufacturers of Reheating Furnace, Mill Stand, Pinch Roll, Tail Brakers, Shears, Flying Shear, Crank Shear, Crop & Cobble Shear, Continuous shears, Rotary shear, Hot Saws, Cold Saws, TMT Quenching Box, Twin Channel, Automatic Cooling Bed, Fixed Grid, Moving Rakes, Fixed Rakes, Aligning Roller, Bar Handling System, Automatic Bundling, Loopers,Horizontal Looper, Vertical Looper, CNC Roll Notching & Branding Machine, Roll Branding Machine, Drives & Automation,Digital DC Drive, Hot Metal Detector,Scada Plc & Motion Controllers With Servo Drives in india

Branding on Casting Roll and Tungsten Carbide Rings of Re-bar branding and section product branding.

Features

  • Numeric Controller for X, Y, Z axis and other Parameters Setting.
  • Digital Display of all Parameters
    • More than 20,000 units of documents storage capacity.
    • 10 Segment Auto Editing Function.
    • Auto Arcing detection Function.
    • After power off, system restart and auto Reloads the Machine Last stage.

Conditions

  • Discharge High Voltage Pulse Controls.

Accessories

  • Eledrode Holding Plates.
  • Tool Kit with Dial Guage for Depth Setting.

Technical Specifications

Specifications

Model No ZNC – 700

Work Place Size

1200 x 650 MM

Work Tank Size

1950 x 1050 x 650 MM

X Axis Travel

700 MM

Y Axis Travel

600 MM

Z Axis Travel

300 MM

Max. Job Diameter

950 MM

Max. Work Piece

Wt. 2000 K.G.

Machine Size

2400 x 2010 x 2740 MM(appx.)
